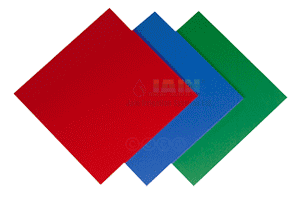

Ex-cel® Pro
|
Excel® PVC Pro Sheet is chemically foamed, rigid, light weight extruded sheet with fine & homogenous closed cell structure with close thickness tolerance. Sheets are inspected 100% for surface defects.
Main Features
- Manufactured under cloase tolerances
- Each Sheet invidually inspected
- Light Weight
- Hard and Smooth Surface
- Excellent Printability
|
Applications
- Signs
- Point of Purchase
The ultimate PVC foam sheet for digital printing. Excel Pro is a sheet excusively developed for the high end digital print applications. The sheets are produced under very close dimensional tolerances. With Ex-cel Pro you are able to achieve a sharp and high quality printed image.
|
|
Product Range |
| Code |
Colour |
Thickness |
Std. Width |
Std. Length |
| mm |
inch |
mm |
inch |
| J1018 |
Bright White |
3 to 10 mm |
1220 |
48 |
2440 |
96 |
|
| |
Technical Specifications: |
| Properties |
Test |
Unit |
Value |
Physical : |
|
|
|
| Density |
DIN53479 |
g/cc |
0.55 - 0.70 |
| Hardness |
DIN53505 |
Shore 'D' |
≥ 42 |
| Water Absorption |
DIN53495 |
% |
≤ 1.0 |
Mechanical : |
| Tensile Strength |
DIN 53455 |
MPa |
≥ 15 |
| Elongation at Break |
DIN 53455 |
% |
≥ 15 |
| Modulus of Elasticity |
DIN 53457 |
MPa |
900 - 1500 |
| Izod Impact Strength |
ASTM D256 |
KJ/M² |
≥ 9.0 |
Electrical : |
| Dielectric strength |
DIN 53481 |
KV/cm |
≥ 90 |
Thermal : |
| Vicat Softening Temperature |
DIN 53460 |
ºC |
≥ 73 |
| Coefficient of linear expansion |
DIN 53752 |
mm/mºC |
0.08 |
| Thermal Conductivity |
DIN 52616 |
W/mK |
0.05 - 0.07 |
Flammability : |
| UK |
BS 476 Part 7 |
|
Class 1 Y |
| France |
NFP 92-501 |
|
Class M1 |
| USA |
UL 94 |
|
V 0 |
|
Click here for more details
|
