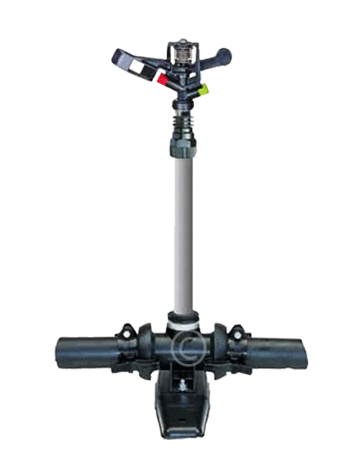

Light weight, plastic construction with minimum metal parts.
Stainless steel retraction spring maintains uniform rotation speed.
Used with Rainport™ - PS assembly.
1/2” Male threaded inlet connection.
Full circle.
Flexibility in selection, four colour coded nozzles.
Optional sand protection cover to protect the spring from sand.
Uniform water distribution.
Applications:
Primary applications: overhead irrigation for extra-range spacings up to 12 m.
Recommended for closely spaced field crops like potato, leafy vegetables, cotton, oil seeds, pulses, cereals, fodder crops, etc.
360° angle view
Performance Table 5022U
Nozzle
Pressure
Discharge
Diameter
Pressure (mm/h) / spacing (m)
mm/colour
kg/cm²
m³/hr
m
9 x 9
9 x 10
10 x 10
9 x 12
10 x 12
12 x 12
2.4
Yellow
(Square Nozzle)
2.5
0.360
19.0
4.4
4.0
3.6
3.3
3.0
2.5
3.0
0.390
19.0
4.8
4.3
3.9
3.6
3.2
2.7
3.5
0.430
19.0
5.3
4.8
4.3
4.0
3.6
3.0
4.0
0.460
19.0
5.7
5.1
4.6
4.3
3.8
3.2
2.3 x 1.8
Silver x Green
2.5
0.520
22.0
6.5
5.8
5.3
4.9
4.4
3.6
3.0
0.580
22.0
7.2
6.4
5.8
5.4
4.8
4.0
3.5
0.620
22.0
7.7
6.9
6.2
5.7
5.2
4.3
4.0
0.670
22.0
8.3
7.4
6.7
6.2
5.6
4.7
2.4 x 1.8
yellow x Green
(square nozzle)
2.5
0.520
20.0
6.5
5.8
5.3
4.9
4.4
3.6
3.0
0.560
20.0
6.9
6.2
5.6
5.2
4.7
3.9
3.5
0.620
20.0
7.7
6.9
6.2
5.7
5.2
4.3
4.0
0.650
20.0
8.0
7.2
6.5
6.0
5.4
4.5
2.5 x 1.8
Purple x Green
2.5
0.560
21.0
6.9
6.2
5.6
5.2
4.7
3.9
3.0
0.620
21.0
7.6
6.9
6.2
5.7
5.2
4.3
3.5
0.670
22.0
8.3
7.4
6.7
6.2
5.6
4.6
4.0
0.720
22.0
8.9
8.0
7.2
6.7
6.0
5.0
Performance Table 5022
Nozzle
Pressure
Discharge
Diameter
Pressure (mm/h) / spacing (m)
mm/colour
kg/cm²
m³/hr
m
10 x 10
10 x 12
12 x 12
12 x 14
14 x 14
2.8 x 1.8
Orange x Green
2.5
0.690
22.0
6.9
5.8
4.8
4.1
3.5
3.0
0.760
22.0
7.6
6.3
5.3
4.5
3.9
3.5
0.820
22.0
8.2
6.8
5.7
4.9
4.2
4.0
0.860
22.0
8.6
7.2
6.0
5.1
4.4
3.0 x 1.8
Red x Green
2.5
0.760
22.0
7.6
6.3
5.3
4.5
3.9
3.0
0.840
23.0
8.4
7.0
5.8
5.0
4.3
3.5
0.900
23.0
9.0
7.5
6.3
5.4
4.6
4.0
0.970
23.0
9.7
8.1
6.7
5.8
4.9
3.2 x 1.8*
Green x Green
2.5
0.820
23.0
8.2
6.8
5.7
4.9
4.2
3.0
0.900
24.0
9.0
7.5
6.3
5.4
4.6
3.5
0.980
24.0
9.8
8.2
6.8
5.8
5.0
4.0
1.400
24.0
10.4
8.7
7.2
6.2
5.3
3.5 x 2.5 Blue x Gray
2.5
1.060
24.5
10.6
8.8
7.4
6.3
5.4
3.0
1.160
25.0
11.6
9.7
8.1
6.9
5.9
3.5
1.240
25.5
12.4
10.3
8.6
7.4
6.3
4.0
1.330
26.0
13.3
11.1
9.2
7.9
6.8
4.0 x 2.5
Black x Gray
2.5
1.260
25.0
12.6
10.5
8.7
7.5
6.4
3.0
1.380
25.5
13.8
11.5
9.6
8.2
7.0
3.5
1.480
26.0
14.8
12.3
10.3
8.8
7.5
4.0
1.580
26.5
15.8
13.2
11.0
9.4
8.1
* Standard Nozzle Rear nozzle colour : 1.8mm light green; 2.5 mm gray Colour code - Distribution uniformity
CU < 85%
CU = 85 - 88%
CU = 88 - 92%
CU < 85%
Ordering Specifications - 5022U
Example: D5152911 - This code represents 5022-U sprinkler with dual nozzle of 2.4 x 1.8 mm.
Performance Table - Single Nozzle
Nozzle
mm/colour
Pressure
kg/cm²
Discharge
m³/h
Diameter
m
2.3
Gray
2.0
0.330
21.5
3.0
0.390
22.0
4.0
0.460
22.0
2.5
Purple
2.0
0.350
21.5
3.0
0.430
22.0
4.0
0.490
22.0
2.8
Orange
2.0
0.450
22.0
3.0
0.550
23.0
4.0
0.630
24.0
3.0
Red
2.0
0.510
23.0
3.0
0.530
24.5
4.0
0.720
25.0
3.2*
Green
2.0
0.570
23.5
3.0
0.700
24.5
4.0
0.810
25.0
3.5
Blue
2.0
0.660
25.0
3.0
0.810
26.0
4.0
0.930
26.0
4.0
Black
2.0
0.850
24.0
3.0
1.030
26.0
4.0
1.180
26.0
* Standard nozzle
Ordering Specifications - 5022
Example: D5152722 - This code represents 5022 sprinkler with dual nozzle of 2.8 x 1.8 mm.
Note: For sales order outside India add ‘E’ instead of ‘D’ in the above mentioned ordering code. e.g. for ordering 5022 sprinkler dual nozzle 2.8 x 1.8mm change the code as E5152722.
