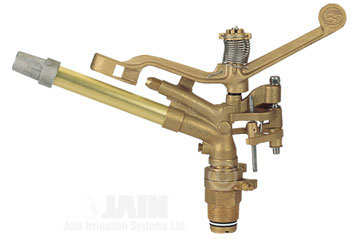

Magnum 21 - Impact Sprinkler Long Range

Features and Specifications:

All-purpose full - to part-circle sprinkler 1 1/4� male giant sprinkler.
Easily attached full- to part-circle mechanism for stock saving and easy maintenance.
Low angle 21� for highly effective irrigation under wind conditions.

Extra coverage and distribution uniformity with unique triple-nozzle overlapping design.
High water distribution with spacing up to 40 m.

Applications:

Large fields and plantations (tea gardens and coffee).

Performance Table - Magnum 21

Nozzle mm	Pressure kg/cm²	Discharge m³/h	Diameter m
9.0 x 6.5 x 3.2	4.0	0.980	51.0
	5.0	1.090	53.0
	6.0	1.200	54.0
	7.0	1.280	55.0
11.0 x 6.5 x 3.2	4.0	1.270	54.0
	5.0	1.400	58.0
	6.0	1.540	67.0
	7.0	1.680	68.0
12.0 x 6.5 x 3.2	4.0	1.320	57.0
	5.0	1.490	62.0
	6.0	1.650	68.0
	7.0	1.800	70.0
13.0 x 6.5 x 3.2*	4.0	1.490	60.0
	5.0	1.790	65.0
	6.0	1.900	69.0
	7.0	2.030	71.0
14.5 x 6.5 x 3.2	4.0	1.700	62.0
	5.0	1.910	65.0
	6.0	2.080	70.0
15.0 x 6.5 x 3.2	4.0	1.930	65.0
	5.0	2.150	69.0
	6.0	2.360	73.0
	7.0	2.480	76.0
* Standard nozzle

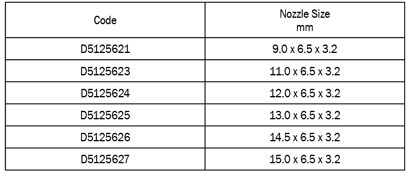

Ordering Specifications
