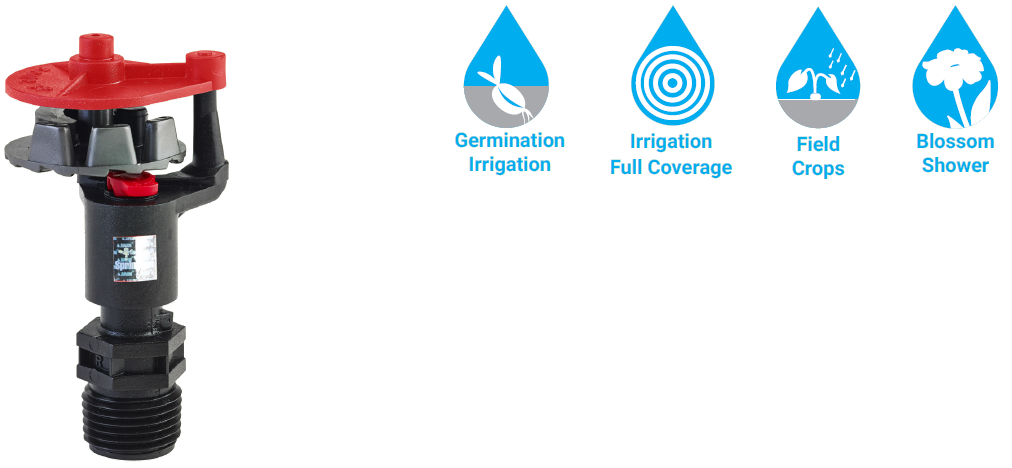

502-H - Turbo Hammer Medium Volume Sprinkler

Features and Specifications:

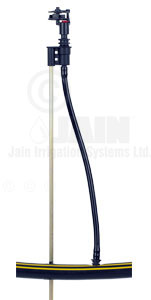

Turbo hammer medium-volume sprinkler mounted on Rainport� - PS assemblies.
Excellent water distribution.
Fine water droplets for delicate irrigation of all crops.
Full circle.
1/2� BSP male threaded inlet.
Minimum filtration requirement - 100 micron.

Applications

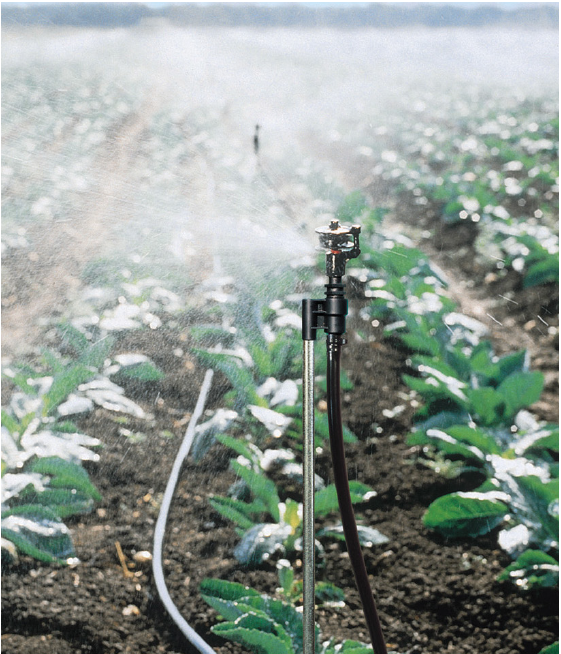

Overhead irrigation for extra-range spacings up to 8 m.

Technical Specifications:

Nozzle mm/colour	Pressure kg/cm²	Discharge m³/hr	Diameter m	Precipitation (mm/h) / Spacing (m)
Nozzle mm/colour	Pressure kg/cm²	Discharge m³/hr	Diameter m	8 x 8	8 x 9	9 x 9	9 x 10	10 x 10
2.5 Red	1.5	0.226	13.0	3.5	3.1	2.8	2.5	2.3
	2.0	0.263	15.0	4.1	3.5	3.2	2.9	2.6
	2.5	0.292	15.5	4.6	4.0	3.6	3.2	2.9
	3.0	0.318	16.5	5.0	4.4	3.9	3.5	3.2
	3.5	0.345	17.0	5.4	4.8	4.2	3.8	3.4

Colour code - Distribution uniformity

CU < 85%

CU = 85-88%

CU = 88-92%

CU > 92%

Ordering Specifications:
