Features and Specifications:
-
The perfect micro-sprinkler for overhead irrigation in greenhouses.
-
Bridgeless - no dripping during operation.
-
No deflection or “dead corners”.
-
Low trajectory, no water above nozzle level.
-
Superior uniformity over a wide range of spacing.
-
Connections to PE or PVC pipes.
|
-

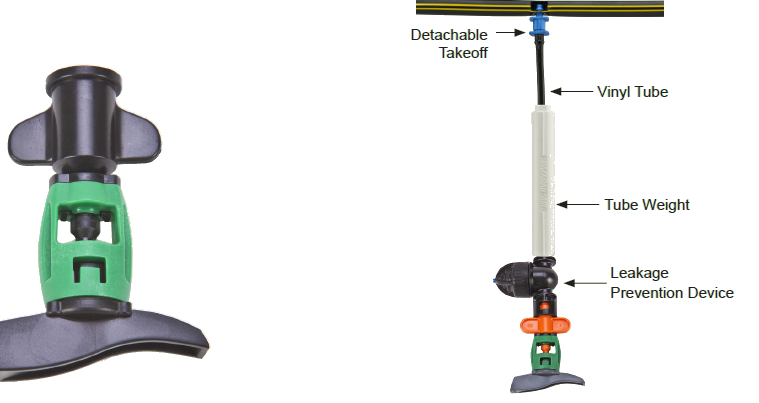

LPD (Leakage Prevention Device) stops drainage after shut-off (optional).
-
Patent pending.
-
Operating pressure range: 2.0 to 3.0 kg/cm² (14.22 - 42.66 psi).
-
Flow rates: 43 to 200lph.
-
Filtration requirements
- Brown and gray nozzles: 130 microns.
- Green, orange, black and blue nozzles: 200 microns.
|
Performance Table for rainport™ Application:
Lateral Spacing, m
|
3 |
4 |
5 |
6 |
| Unit spacing, m |
1.0 |
1.5 |
2.0 |
2.5 |
3.0 |
1.0 |
1.5 |
2.0 |
2.5 |
3.0 |
1.0 |
1.5 |
2.0 |
2.5 |
3.0 |
1.0 |
1.5 |
2.0 |
2.5 |
3.0 |
| Nozzle Colour |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Brown |
14.4 |
9.6 |
7.2 |
6.8 |
4.8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Gray |
23.4 |
15.6 |
11.7 |
9.4 |
7.8 |
17.6 |
11.7 |
8.8 |
7.0 |
5.9 |
|
|
|
|
|
|
|
|
|
|
| Green |
35.0 |
23.3 |
17.5 |
14.0 |
11.7 |
26.3 |
17.5 |
13.1 |
10.5 |
8.8 |
21.0 |
14.0 |
10.5 |
8.4 |
7.0 |
|
|
|
|
|
| Orange |
40.0 |
26.7 |
20.0 |
16.0 |
13.3 |
30.3 |
20.0 |
15.0 |
12.0 |
10.0 |
24.0 |
16.0 |
12.0 |
9.6 |
8.0 |
|
|
|
|
|
| Black |
53.4 |
35.6 |
26.7 |
21.4 |
17.8 |
40.1 |
26.7 |
20.0 |
16.0 |
13.4 |
32.0 |
21.4 |
16.0 |
12.8 |
10.7 |
26.7 |
17.8 |
13.4 |
10.7 |
8.9 |
| Blue |
66.6 |
44.4 |
33.3 |
26.6 |
22.2 |
50.0 |
33.3 |
25.0 |
20.0 |
16.7 |
40.0 |
26.6 |
20.0 |
16.0 |
13.3 |
13.3 |
22.2 |
16.7 |
13.3 |
11.1 |
Note:Tested at 1.8 m above ground
Colour code - Distribution uniformity
 CU = 85-88% - fair |
 CU = 88-92% - good |
 CU > 92% - excellent |
|
Flow rates and wetted diameter:
| Nozzle Colour |
Flow Rate
(lph) at 2.0 kg/cm² |
Wetted Diameter *
(m) |
| Brown |
43 |
6.5 |
| Gray |
70 |
7.0 |
| Green |
105 |
7.5 |
| Orange |
120 |
7.5 |
| Black |
160 |
8.5 |
| Blue |
200 |
9.0 |
* Tested at 1.8 m above ground
|
Ordering Specifications:
Example: D281105 - This code represents Green Spin with orange coloured nozzle. |
|
|
|
