Features and Specifications:
-
Manufactured with UV & sunlight resistant, chemical resistant non corrosive plastic material for stable performance.
-
Four outlet self cleaning, pressure compensating bubbler.
-

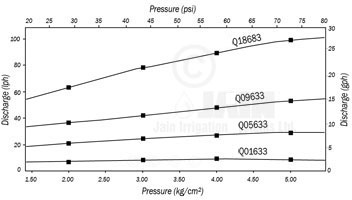

Wide pressure compensating range of 1.5 to 4 kg/cm² (21.33 to 56.88 psi)
-
Precision moulded liquid silicone rubber diaphragm ensures pressure compensation, uniform water application and long lasting high quality performance.
-
Coefficient of manufacturing variance less than 7%.
-
Available in four colour coded models. Flow per outlet is,
Blue - 7.5 lph (2 gph)
Black - 23 lph (6 gph)
Red - 39 lph (10 gph)
Green - 75 lph (20 gph)
-
Minimum 100 micron filtration required. Type of filtration and its precision can be decided by quality of source water
-
Available with 3/4” MPT inlet.
-
Can be used with 6mm OD extension tubing/vinyl tubing for water distribution.
|
Applications:
-
Ideal for converting sprinkler system to low flow, because it is designed to apply the amount of water the plants need during the time of sprinkler zone operates.
-
Can be used to irrigate where lateral requires to run for longer length and irrigation time is a limitation e.g. landscaping of road dividers, shrub islands between turfs and lawns, trees, flowers and ground cover planting beds.
|
