Features and Specifications:
-

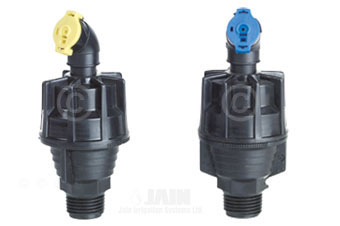

Ball-driven, extra-range sprinkler on Rainport™ - PS system.
-
Compact, sturdy, closed and protected ball engine.
-
Bayonet nozzle for easy service.
-

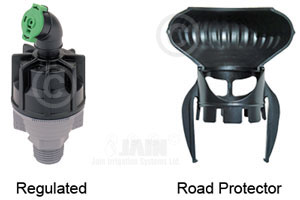

Available with flow regulated option with silver coloured base.

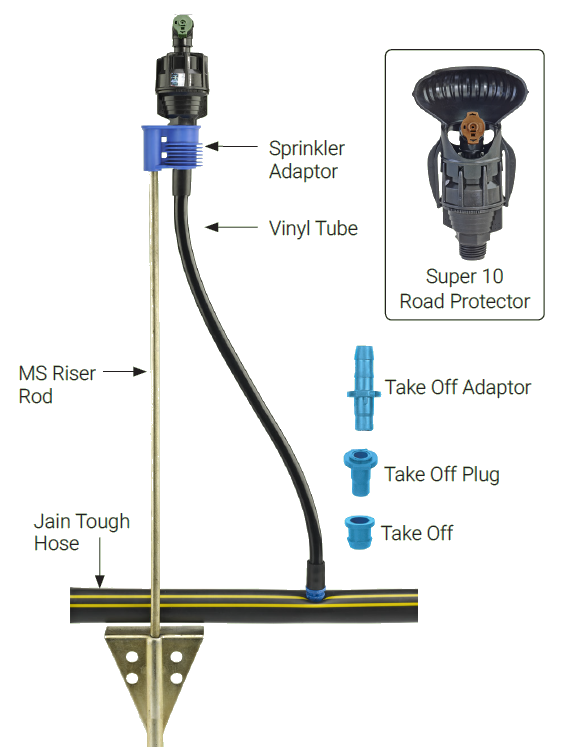

Specially designed road protector is available on demand. -
High water distribution.
|

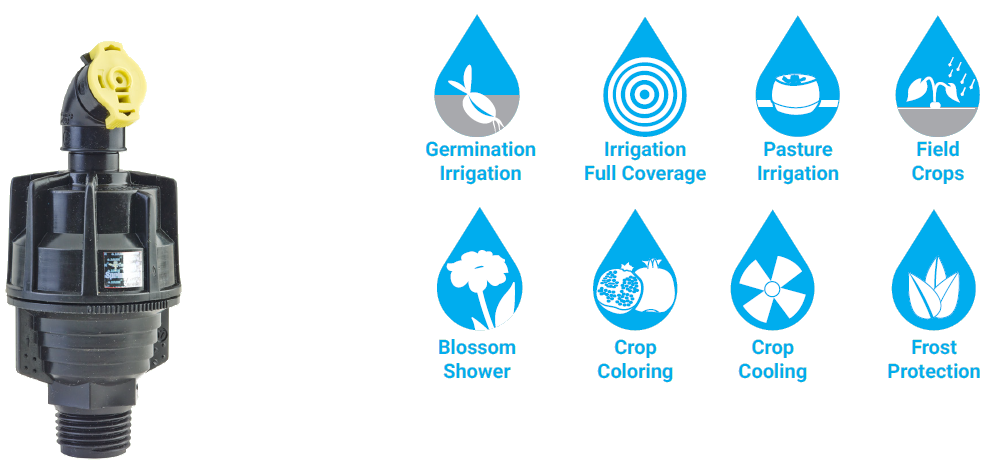

Applications
|
|
Performance Table
Nozzle
Colour |
Pressure
kg/cm² |
Discharge
m³/hr |
Diameter
m |
Precipitation (mm/h) / Spacing (m) |
| 9 x 9 |
9 x 10 |
9 x 12 |
10 x 10 |
10 x 12 |
12 x 12 |
| Blue |
2.5 |
0.360 |
17.0 |
4.4 |
4.0 |
3.3 |
3.6 |
3.0 |
2.5 |
| |
3.0 |
0.395 |
17.0 |
4.9 |
4.4 |
3.7 |
4.0 |
3.3 |
2.7 |
| 3.5 |
0.425 |
16.5 |
5.2 |
4.7 |
3.9 |
4.3 |
3.5 |
3.0 |
| 4.0 |
0.455 |
16.5 |
5.6 |
5.1 |
4.2 |
4.6 |
3.8 |
3.2 |
| F.R. |
3.0 - 5.0 |
0.335 |
17.0 |
4.1 |
3.7 |
3.1 |
3.3 |
2.8 |
2.3 |
| Yellow |
2.5 |
0.450 |
20.0 |
5.6 |
5.0 |
4.2 |
4.5 |
3.8 |
3.1 |
| |
3.0 |
0.495 |
20.0 |
6.1 |
5.5 |
4.6 |
5.0 |
4.1 |
3.4 |
| 3.5 |
0.530 |
20.0 |
6.5 |
5.9 |
4.9 |
5.3 |
4.4 |
3.7 |
| 4.0 |
0.570 |
20.0 |
7.0 |
6.3 |
5.3 |
5.7 |
4.8 |
4.0 |
| F.R. |
3.0 - 5.0 |
0.450 |
20.0 |
5.6 |
5.0 |
4.2 |
4.5 |
3.8 |
3.1 |
| Green |
2.5 |
0.550 |
20.0 |
6.8 |
6.1 |
5.1 |
5.5 |
4.6 |
3.8 |
| |
3.0 |
0.600 |
20.0 |
7.4 |
6.7 |
5.6 |
6.0 |
5.0 |
4.2 |
| 3.5 |
0.650 |
20.0 |
8.0 |
7.2 |
6.0 |
6.5 |
5.4 |
4.5 |
| 4.0 |
0.695 |
20.0 |
8.6 |
7.7 |
6.4 |
7.0 |
5.8 |
4.8 |
| F.R. |
3.0 - 5.0 |
0.550 |
20.0 |
6.8 |
6.1 |
5.1 |
5.5 |
4.6 |
3.8 |
| Red |
2.5 |
0.650 |
21.0 |
7.9 |
7.1 |
5.9 |
6.4 |
5.3 |
4.4 |
| |
3.0 |
0.710 |
21.0 |
8.7 |
7.8 |
6.5 |
7.0 |
5.9 |
4.9 |
| 3.5 |
0.770 |
21.0 |
9.4 |
8.5 |
7.1 |
7.6 |
6.4 |
5.3 |
| 4.0 |
0.820 |
21.0 |
10.1 |
9.1 |
7.6 |
8.2 |
6.8 |
5.7 |
| F.R. |
3.0 - 5.0 |
0.650 |
21.0 |
7.9 |
7.1 |
5.9 |
6.4 |
5.3 |
4.5 |
F.R. = Flow Regulator
Colour code - Distribution uniformity
 CU < 85% |
 CU = 85-88% |
 CU = 88-92% |
 CU > 92% |
|
Performance Table for Brown Nozzle for Road Protector only
Nozzle
Colour |
Pressure
kg/cm² |
Discharge
m³/hr |
Diameter
m |
| Brown |
2.5 |
0.320 |
16.0 |
| |
3.0 |
0.350 |
16.0 |
| 3.5 |
0.380 |
16.0 |
| 4.0 |
0.405 |
16.0 |
| F.R. |
3.0.5.0 |
0.320 |
16.0 |
|
Ordering Specifications:

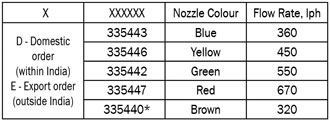

Example: D335446 - This code represents Super 10 sprinkler with yellow nozzle.
* Super 10, Brown nozzle 320 lph for road protector
Note: Super 10 with Low angel nozzle can be supplied on demand. |
|
|
|
