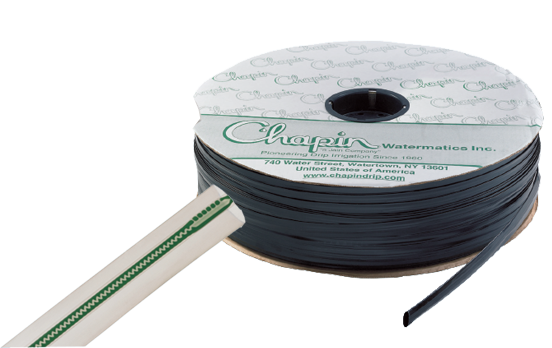

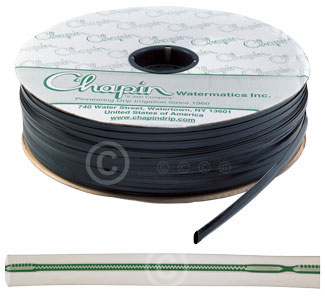

Chapin™ - Twin-Wall™ –BTF Drip Tape

Features and Specifications

  • Manufactured from special grade virgin plastic using state-of-the art technology that guarantees the best results.
  • Precision formed flow path channels.
  • Large cross-sectional, hydraulically designed high vortex, turbulent flow-path that makes it a clog resistant drip tape.
  • Economical.
  • Off center slit outlets restricts water movement along the tape and ensures each drop falls to the soil.
  • Slit outlet, prevents entrance of the soil through outlet.
  • Lower tension while winding ensures less retraction in the field and avoids kinking.
  • Excellent CVm and emitter exponent makes longer length of run possible.
  • Minimum 100 micron filtration recommended.
  • Available in sizes of 16 mm (5/8”) nominal diameter.
  • Available in wall thickness of 0.1, 0.13, 0.15, 0.2 and 0.25mm (4, 5, 6, 8 and 10 mil)
  • Specially designed Tape Lock™ fittings are available. Please refer to ‘Poly Fitting & Accessories’ page.

Applications

  • Suitable for surface as well as sub surface installations.
  • Recommended for crops like cotton, banana, vegetables, sugarcane, potato, floriculture, strawberries, peppers, melons, etc.

Coil Lengths

Nominal Diameter Wall Thickness Coil Lengths
mm inch mm mil m ft.
16 5/8 0.10 4 4573, 2287, 1000, 305 15000, 7500, 3280, 1000
16 5/8 0.13 5 3049, 1524, 1000, 305 10000, 5000, 3280, 1000
16 5/8 0.15 6 3049, 1524, 1000, 305 10000, 5000, 3280, 1000
16 5/8 0.20 8 2287, 1220, 1000, 305 7500, 4000, 3280, 1000
16 5/8 0.25 10 1829, 1000, 915, 305 6000, 3280, 3000, 1000

Note: 1 mil = 1/1000th part of an inch = 0.0254 mm.


Technical Specifications - Emitter

Nominal Diameter
Wall Thickness Maximum Working Pressure

Spacing

Discharge (at max. working pressure)
mm mm kg/cm² cm lph/m lph/Emitter
16 0.10 0.40 20 2.23, 2.98, 3.72, 4.84 0.45, 0.60, 0.74, 0.97
30 1.86, 2.23, 2.98, 3.72 0.56, 0.67, 0.89, 1.12
16 0.13 0.70 15 3.72, 4.84 0.56, 0.73
20 2.98, 3.72, 4.84 0.60, 0.74, 0.97
30 1.86, 2.23, 2.98, 3.72, 4.84 0.56, 0.67, 0.89, 1.12, 1.45
16 0.15 0.70 15 3.72, 4.84 0.56, 0.73
20 2.98, 3.72, 4.84 0.60, 0.74, 0.97
30 1.86, 2.23, 2.98, 3.72, 4.84 0.56, 0.67, 0.89, 1.12, 1.45
16 0.20 0.70 20 2.98, 3.72, 4.84 0.60, 0.74, 0.97
30 1.86, 2.23, 2.98, 3.72, 4.84 0.56, 0.67, 0.89, 1.12, 1.45
16 0.25 0.70 20 2.98, 3.72, 4.84 0.60, 0.74, 0.97
30 1.86, 2.23, 2.98, 3.72, 4.84 0.56, 0.67, 0.89, 1.12, 1.45

Technical Specifications - US

Nominal Diameter
Wall Thickness Maximum Working Pressure

Spacing

Discharge (at max. working pressure)
inch mil psi inch gpm/100 feet gph / Emitter
5/8 4 6 8 0.30, 0.40, 0.50, 0.65 0.12, 0.16, 0.20, 0.26
12 0.25, 0.30, 0.40, 0.50 0.15, 0.18, 0.24, 0.30
5/8 5 10 6 0.50, 0.65 0.15, 0.19
8 0.40, 0.50, 0.65 0.16, 0.20, 0.26
12 0.25, 0.30, 0.40, 0.50, 0.65 0.15, 0.18, 0.24, 0.30, 0.38
5/8 6 10 6 0.50, 0.65 0.15, 0.19
8 0.40, 0.50, 0.65 0.16, 0.20, 0.26
12 0.25, 0.30, 0.40, 0.50, 0.65 0.15, 0.18, 0.24, 0.30, 0.38
5/8 8 10 8 0.40, 0.50, 0.65 0.16, 0.20, 0.26
12 0.25, 0.30, 0.40, 0.50, 0.65 0.15, 0.18, 0.24, 0.30, 0.38
5/8 10 10 8 0.40, 0.50, 0.65 0.16, 0.20, 0.26
12 0.25, 0.30, 0.40, 0.50, 0.65 0.15, 0.18, 0.24, 0.30, 0.38

Ordering Specifications

Go to related products: Drip Irrigation

Click here for more details
