Jain Tough Hose-TwinLine®
|
|
|
Features and Specifications:
-

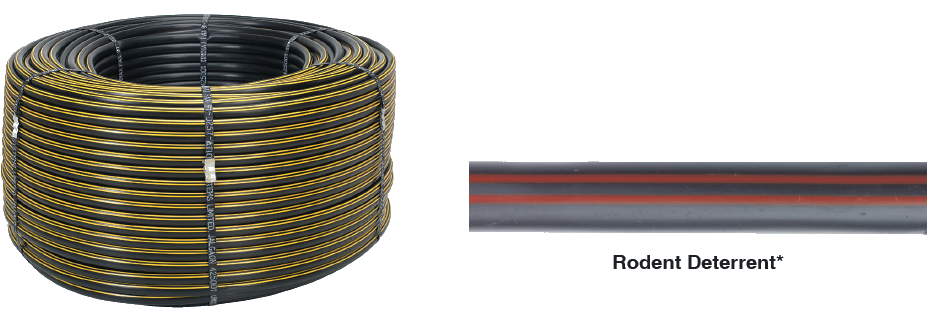

Black in color with two parallel yellow strips - ‘TwinLine®’. Also available in red stripes for rodent deterrent option.
-
Manufactured from virgin LLDPE using advanced extrusion
technology.
-
Excellent characteristics of LLDPE provide durable
tubing with close dimensional tolerances.
-
UV stabilized.
-
No environmental effects.
-
Smooth inner surface minimizes frictional losses.
-
Pre-punched tubing at specified distance and hole size can be supplied on demand (standard hole size is 2.9 mm).
-
On demand, can be supplied with rodent deterrent feature.
-
Manufactured as per IS / ISO/ ASAE / AS / ASTM standards.
-
Each batch is tested for the following parameters:
- Dimensional tolerances.
- Short term & long term hydraulic pressure.
- Heat reversion.
- Carbon black content.
- Environmental stress crack resistance (ESCR).
- Tensile Strength and Elongation.
Applications:
-
Used as laterals in drip irrigation system.
-
Used in greenhouses for high pressure foggers, sprayheads and jets application.
|
Jain Tough Hose - Twin-Line® Drip Polytube as per IS:12786
Code
Diameter |
Nominal
ID |
Inside
Diameter |
Min. Wall
Thickness |
Std. Coil
Length |
Avg.
Weight per |
| mm |
mm |
mm |
m |
kg. |
lbs/100 ft. |
|
Pressure Class 1 |
| DT0121 |
12 |
10.8 |
0.6 |
100, 250, 500 |
20.09 |
1.35 |
| DT0161 |
16 |
14.4 |
0.8 |
100, 250, 400 |
35.72 |
2.39 |
| DT0201 |
20 |
18.2 |
0.9 |
250 |
50.50 |
3.38 |
| DT0251 |
25 |
22.6 |
1.2 |
250 |
83.90 |
5.62 |
| DT0321 |
32 |
29.0 |
1.5 |
100, 250 |
134.40 |
9.00 |
Pressure Class 2 |
| DT0122 |
12 |
10.2 |
0.9 |
100, 250, 500 |
29.35 |
1.97 |
| DT0162 |
16 |
13.8 |
1.1 |
100, 250, 400 |
48.15 |
3.23 |
| DT0202 |
20 |
17.6 |
1.2 |
250 |
66.28 |
4.44 |
| DT0252 |
25 |
21.6 |
1.7 |
250 |
116.37 |
7.80 |
| DT0321 |
32 |
28.0 |
2.0 |
100, 250 |
176.27 |
11.81 |
Pressure Class 3 |
| DT0123 |
12 |
9.6 |
1.2 |
100, 250, 500 |
38.07 |
2.55 |
| DT0163 |
16 |
13.2 |
1.4 |
100, 250, 400 |
60.05 |
4.02 |
| DT0203 |
20 |
17.0 |
1.5 |
250 |
81.52 |
5.46 |
| DT0253 |
25 |
20.8 |
2.1 |
250 |
141.28 |
9.47 |
| DT0323 |
32 |
27.0 |
2.5 |
100, 250 |
216.66 |
14.52 |
- Jain Irrigation Systems Ltd. are the owners of Trade Mark “Twin-Line®”.
-
Jain Irrigation Systems Ltd. has the statutory right to use the artistic work of two yellow or golden or red parallel stripes on a black tube for irrigation, under the Copyright Act 1957, India.
* Rodent Deterrent tubing is manufactured using a special additive, by virtue of which the properties of the tubing is enhanced in such a way that once the rodent bites the tube it gets an extremely bitter taste. This effect deters the rodent from gnawing the tubing again.
Rodent deterrent tubing is available in two parallel red stripes – “Twin Line®”.
|
|
Jain Tough Hose - Twin-Line®
Code
Diameter |
Nom. Dia. |
Inside
Diameter |
Min. Wall Thickness |
Working Pressure |
Std. Coil Length |
Avg. Weight per Coil |
| mm |
mm |
inch |
mm |
inch |
kg/cm² |
psi |
m |
ft |
kg. |
lbs/100 ft |
| DTI13095 |
13 |
13.0 |
0.512 |
0.95 |
0.037 |
3.7 |
52 |
500 |
1640 |
38.93 |
2.61 |
| DTI13110 |
13 |
13.0 |
0.512 |
1.10 |
0.043 |
4.2 |
59 |
500 |
1640 |
25.02 |
3.05 |
| DTI13140 |
13 |
13.0 |
0.512 |
1.40 |
0.055 |
5.1 |
72 |
500 |
1640 |
31.94 |
3.97 |
| DTI16090 |
16 |
16.0 |
0.630 |
0.90 |
0.035 |
3.0 |
42 |
300 |
984 |
44.68 |
2.99 |
| DTI16110 |
16 |
16.0 |
0.630 |
1.10 |
0.043 |
3.5 |
49 |
300 |
984 |
55.26 |
3.70 |
| DTI16140 |
16 |
16.0 |
0.630 |
1.40 |
0.055 |
4.3 |
61 |
300 |
984 |
71.56 |
4.79 |
|
Jain Tough Hose - Twin-Line® as per AS-2698-1 (Type 30)
Code
Diameter |
Nom.Dia. |
Inside Diameter |
Min. Wall Thickness |
Std. Coil Length |
Avg. Weight per Coil |
| mm |
mm |
inch |
mm |
inch |
m |
g/m |
lbs./100ft |
| DTI10100 |
10 |
09.8 |
0.385 |
1.0 |
0.039 |
300 |
31.73 |
2.12 |
| DTI13120 |
13 |
12.7 |
0.500 |
1.2 |
0.047 |
300 |
49.00 |
3.28 |
| DTI16120 |
16 |
15.8 |
0.622 |
1.2 |
0.047 |
200 |
59.95 |
4.02 |
| DTI19130 |
19 |
18.9 |
0.744 |
1.3 |
0.051 |
200 |
77.15 |
5.17 |
| DTI25150 |
25 |
25.2 |
0.992 |
1.5 |
0.059 |
200 |
127.65 |
8.55 |
| DTI32200 |
32 |
31.5 |
1.240 |
2.0 |
0.078 |
100 |
196.80 |
13.19 |
Example: Inside diameter based tubing.
Jain Tough Hose - Twin Line® as per AS-2698-1 can also be supplied with Type 50 material. |
Ordering Specifications
Example: DTI13140500 - This code refers to Jain Tough Hose of nominal diameter 13 mm and minimum wall thickness of 1.4 mm with standard coil length of 500 m.
Note: - Please refer standard specification table while
ordering.
- Jain Tough Hose in any other wall thickness & / or coil length can be manufactured and supplied as a special order.
- For ordering Jain Tough Hose with Rodent Deterrent features change the above code as ETI13140R500.
- For ordering Jain Tough Hose white coloured tubing, please change the code as ETI13140500W.
- For ordering Jain Tough Hose brown coloured tubing, please change the code as ETI13140500B.
- For ordering Jain Tough Hose purple coloured tubing, please change the code as ETI13140500P.
- For prepunch Jain Tough Hose change the code as,
|
|
|
 |
|
