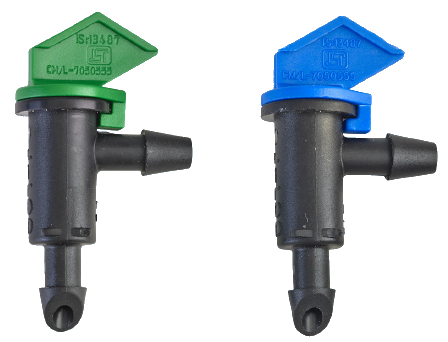

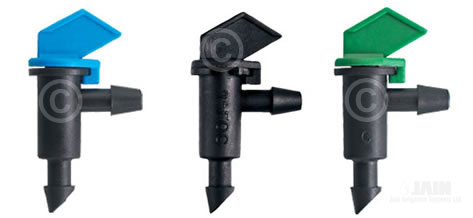

J-Loc™ Emitter

Features and Specifications:

• Made of virgin plastic for stable performance.

• Take apart construction for easy cleaning.

• Latching arrangement prevents insert snap-off during pressure fluctuations.

• Manufacturing coefficient of variation, CVm ≤ 5%.

• Unique design facilitates horizontal or vertical installation of the emitter.

• Coloured insert facilitates easy identification of flow rate.

• UV stabilised.

• No environmental effects.

• Required punch diameter 2.9mm.

• Minimum filtration requirement - 100 micron.

Applications:

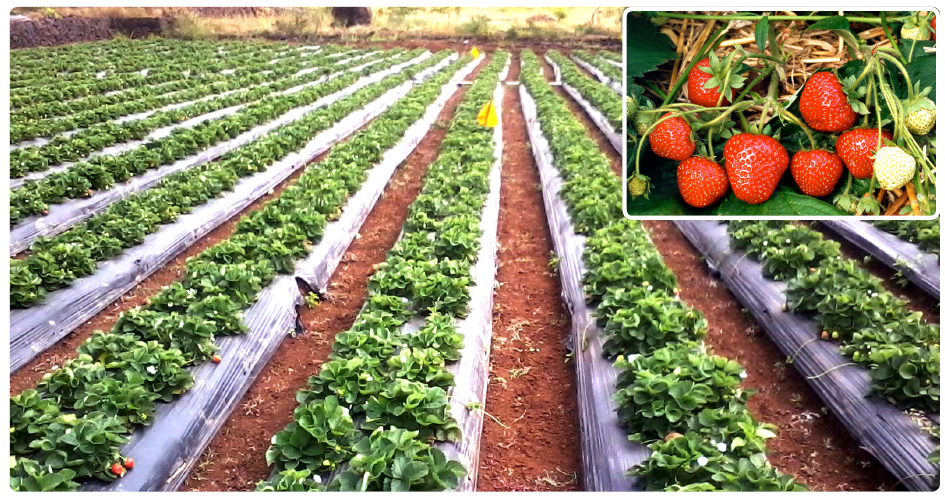

• Suitable for vegetables, closely spaced row crops, glass/green houses & nurseries.

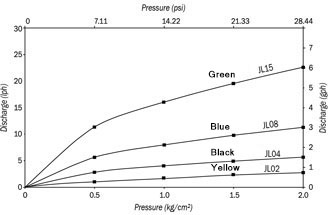

Performance Graph:

Ordering Specifications:

Example: DJL04 - This code represents J-Loc® Emitter having 4 lph discharge.

Technical Specification:

* At operating pressure of 1kg/cm² (14.22 psi)
