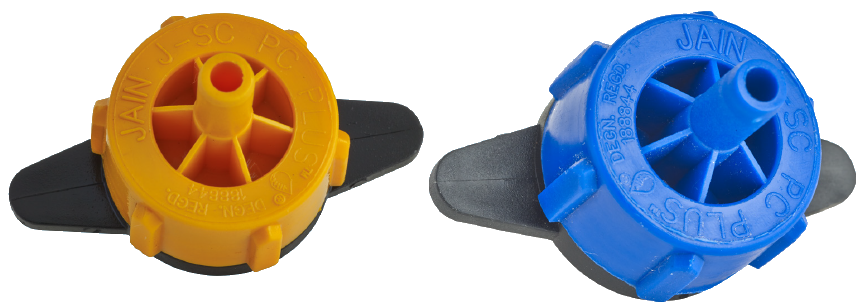

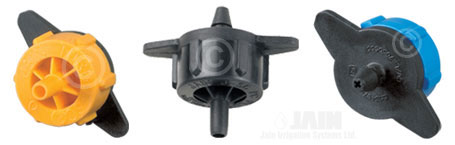

J-SC-PC Plus™ Emitter

Features and Specifications:

• Manufactured from virgin plastic for stable performance.

• Silicone rubber diaphragm ensures consistent performance for longer period.

• Narrow cross shaped inlet acts as a filter.

• Openable dripper - easy to clean.

• Self cleaning design ensures flushing at start up, shut down & during operation.

• Wide operating pressure compensating range 1- 3 kg/cm² (14.22 - 42.66 psi) allows longer length of laterals.

• Manufacturing coefficient of variation, CVm = 5% ensure high field emission uniformity.

• Coloured cap facilitates easy identification of flow rate.


• UV stabilized.

• No environmental effects.

• Optional Anti-bug cap- prevents entrance of ants/bugs into the dripper.

• Required punch diameter 2.9 mm.

• Minimum filtration requirement - 100 micron.

Applications:

• Recommended for orchards, fruit crops, vegetables, nurseries & flowers.

• Recommended to use where section size is large and longer length of run is required.

• Recommended for undulating terrain & steep slopes.

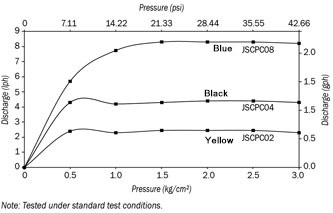

Performance Graph:

Technical Specification:

Flow equation q = kH^x,
q= discharge, lph, H= Pressure Head, kg/cm², k = flow coefficient, x = Emitter exponent.

Ordering Specifications:

Example: DJSCPC02 - This code represents J-SC-PC-Plus® Emitter having 2.2 lph discharge.

J-SC-PC-Plus®: Dripper Product Design Registration No. 183476.
