Turbo Cascade™

Features and Specifications

• An extruded, seamless tube with drippers permanently fixed inside.


• Manufactured from special grade virgin plastic using state-of-the art technology that guarantees the best results.


• Manufactured with most modern, state-of-the-art equipment. It’s computerised continuous online quality control ensures reliable quality and consistent performance.


• Marked with two parallel yellow stripes ‘Twin- Line®’. Symbol of quality. It also helps to ensure upright positioning of the dripper.


• Innovative cascade labyrinth. Its hydrodynamically designed tooth structure helps to create double flow regime viz. central curving flow and turbulent cyclone in the dripper. This helps in continuous flushing of particles.


• Three dimensional filter inlet, unique filtration surface enable clog free operation even under high clog risk conditions.


• Precision laser drilled outlet holes.


• Excellent CVm, manufacturer’s coefficient of variation, ensures best field emission uniformity.


• Online stringent quality checks at every stage.


• Best environmental stress crack resistant.


• Easy to roll back & re-lay.


• Minimum 100 micron filtration recommended.


• Available in three discharge rates of 1.0, 1.7 and 4.0 lph at 1 kg/cm² pressure as per metric standard. 0.27, 0.45 and 1.06 gph at 14 psi as per US standard.


• Available in standard dripper spacing 15, 20, 30, 40, 50, 60, 75 and 90 cm. Other spacing and group spacings are available on demand.


• Available in 12, 16, 17, 19, 20 and 23 mm nominal diameter as per metric standard. Also available in 5/8”, 7/8” and 1-3/8” nominal diameter as per US standard.


• On demand, available with rodent deterrent feature.


• Specially designed split ring fittings are available. Please refer to ‘Poly Fitting & Accessories’ page.

Applications

• Recommended for irrigation of closely spaced row crops like sugarcane, cotton, banana, strawberry, vegetables, spices and floriculture, etc.


• Suitable for surface as well as sub surface installations.


• Recommended to use in greenhouses and nurseries.


• Used for widely spaced horticultural plants like mango, citrus, guava, apple etc. in group spacings.

Dimensions of Turbo Cascade - Metric

* Rodent Deterrent tubing is manufactured using a special additive, by virtue of which the properties of the tubing is enhanced in such a way that once the rodent bites the tube it gets an extremely bitter taste. This effect deters the rodent from gnawing the tubing again. Rodent deterrent tubing is available in two parallel red stripes – “Twin Line®”.

Dimensions of Turbo Cascade - US

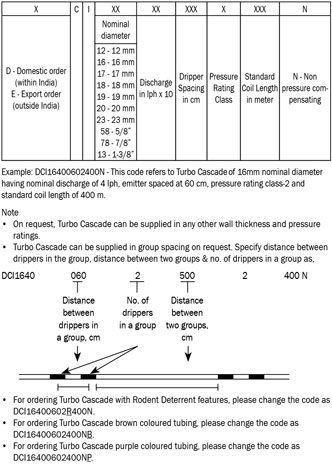

Ordering Specifications - Turbo Cascade

Performance Graph - Turbo Cascade

Technical Specifications for Emitter - Metric

Flow equation q = kHX, q = discharge, lph, H = Pressure head, kg/cm², x = Emitter exponent

Technical Specifications for Emitter - US

Flow equation q = kHX, q = discharge, gph, H = Pressure head, psi, x = Emitter exponent
