5024 - Impact Plastic Sprinkler 1/2"

Features and Specifications:

Low-volume, low-angle undertree plastic impact sprinkler, 1/2� male.
9º, 12º and 14º with nozzle replacement only .
Integrated stream-straightening vane for maximum range.
High impact heavy-duty plastic materials provide resistance to corrosion, chemicals and UV.
Low angle nozzle minimize wind drifting.

Applications

Undertree, Bananas,Vineyards, Orcherds and plantations.

Technical Specifications - 5024

Nozzle mm/colour	Pressure kg/cm²	Discharge m³/hr	9º		12º		14º
Nozzle mm/colour	Pressure kg/cm²	Discharge m³/hr	Diameter m	msh cm	Diameter m	msh cm	Diameter m	msh cm
2.5 Purple	2.0	0.35	15.5	74	16.5	100	18.0	117
	3.0	0.43	17.0		18.5		19.0
	4.0	0.49	17.5		20.0		20.0
2.8* Orange	2.0	0.45	16.0	75	18.5	110	18.5	125
	3.0	0.55	17.5		20.0		19.5
	4.0	0.63	18.0		21.0		21.0
3.0 Red	2.0	0.35	15.5	76	18.5	120	19.0	130
	3.0	0.43	17.0		20.5		20.5
	4.0	0.49	17.5		21.5		21.5
3.2 Green	2.0	0.35	15.5	77	18.5	122	19.0	135
	3.0	0.43	17.0		20.5		21.0
	4.0	0.49	17.5		22.0		22.5
3.5 Blue	2.0	0.35	15.5	84	18.5	125		140
	3.0	0.43	17.0		20.5
	4.0	0.49	17.5		22.0

* Standard Nozzle
msh - max stream height

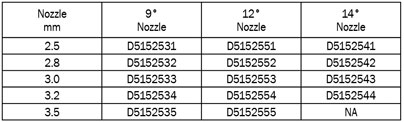

Ordering Specifications:
